| General |
| Device Type |

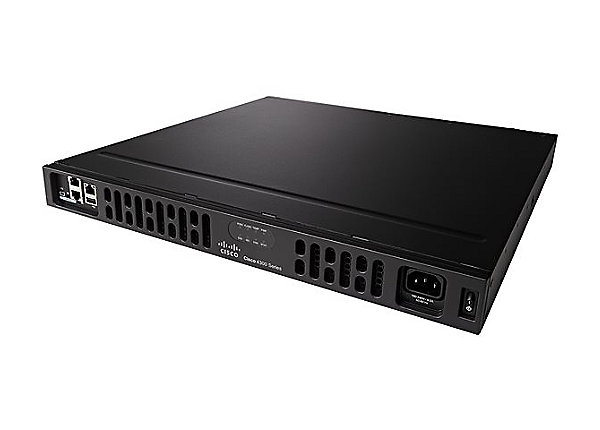

Router |
| Enclosure Type |
Rack-mountable – modular – 1U |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Aggregate throughput: 100 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol |
SNMP, RMON |
| Features |
VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM |
4 GB (installed) / 16 GB (max) – DDR3 SDRAM |
| Flash Memory |
4 GB (installed) / 16 GB (max) |
| Expansion / Connectivity |
| Interfaces |
WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 | Serial: 1 x console – RJ-45 | Management: 1 x console – mini-USB Type B | Serial: 1 x auxiliary – RJ-45 | USB 2.0: 1 x 4 pin USB Type A | 2 x SFP (mini-GBIC) | Management: 1 x RJ-45 |
| Expansion Slots |
2 (total) / 2 (free) x NIM | 1 (total) / 1 (free) x ISC | 1 (total) / 1 (free) x Enhanced Service Module (SM-X) | 2 (total) / 0 (free) x DIMM 240-pin |
| Power |
| Power Device |
Internal power supply – 250 Watt |
| Installed Qty |
1 (installed) / 1 (max) |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Rack Mounting Kit |
Included |
| Software / System Requirements |
| OS Provided |
Cisco IOS IP Base |
| Dimensions & Weight |
| Width |
17.2 in |
| Depth |
17.2 in |
| Height |
1.8 in |
| Weight |
11.02 lbs |
| Environmental Parameters |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
5 – 85% |
