| General |
| Device Type |

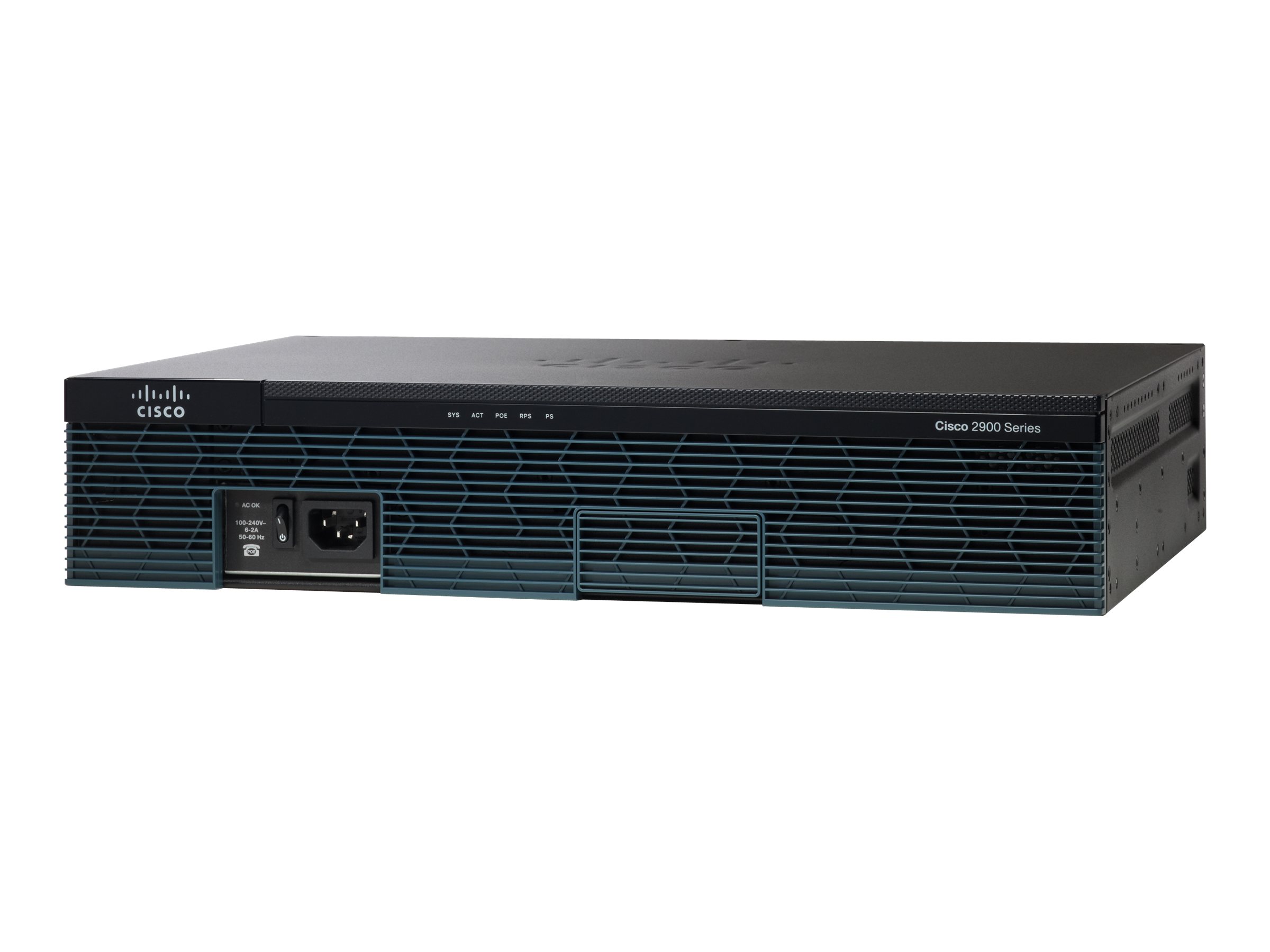

Router |
| Enclosure Type |
Rack-mountable – modular – 2U |
| Connectivity Technology |
Wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol |
IPSec, L2TPv3 |
| Routing Protocol |
OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast |
| Remote Management Protocol |
SNMP, RMON, TR-069 |
| Features |
Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, VCCI V-3, EN 61000, TIA/EIA/IS-968, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM |
512 MB (installed) / 2 GB (max) |
| Flash Memory |
256 MB (installed) / 8 GB (max) |
| Status Indicators |
Power, link/activity |
| Expansion / Connectivity |
| Interfaces |
3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 | Management: 1 x console – RJ-45 | Management: 1 x console – mini-USB Type B | Serial: 1 x auxiliary – RJ-45 | USB: 2 x 4 pin USB Type A |
| Expansion Slots |
4 (total) / 4 (free) x EHWIC | 2 (total) / 1 (free) x CompactFlash | 1 (total) / 1 (free) x expansion slot | 1 (total) / 1 (free) x service module (SM) | 2 (total) / 2 (free) x PVDM |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Software / System Requirements |
| OS Provided |
Cisco IOS IP Base |
| Dimensions & Weight |
| Width |
17.2 in |
| Depth |
12 in |
| Height |
3.5 in |
| Weight |
18.08 lbs |
| Environmental Parameters |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
5 – 85% |
