| General |
| Device Type |

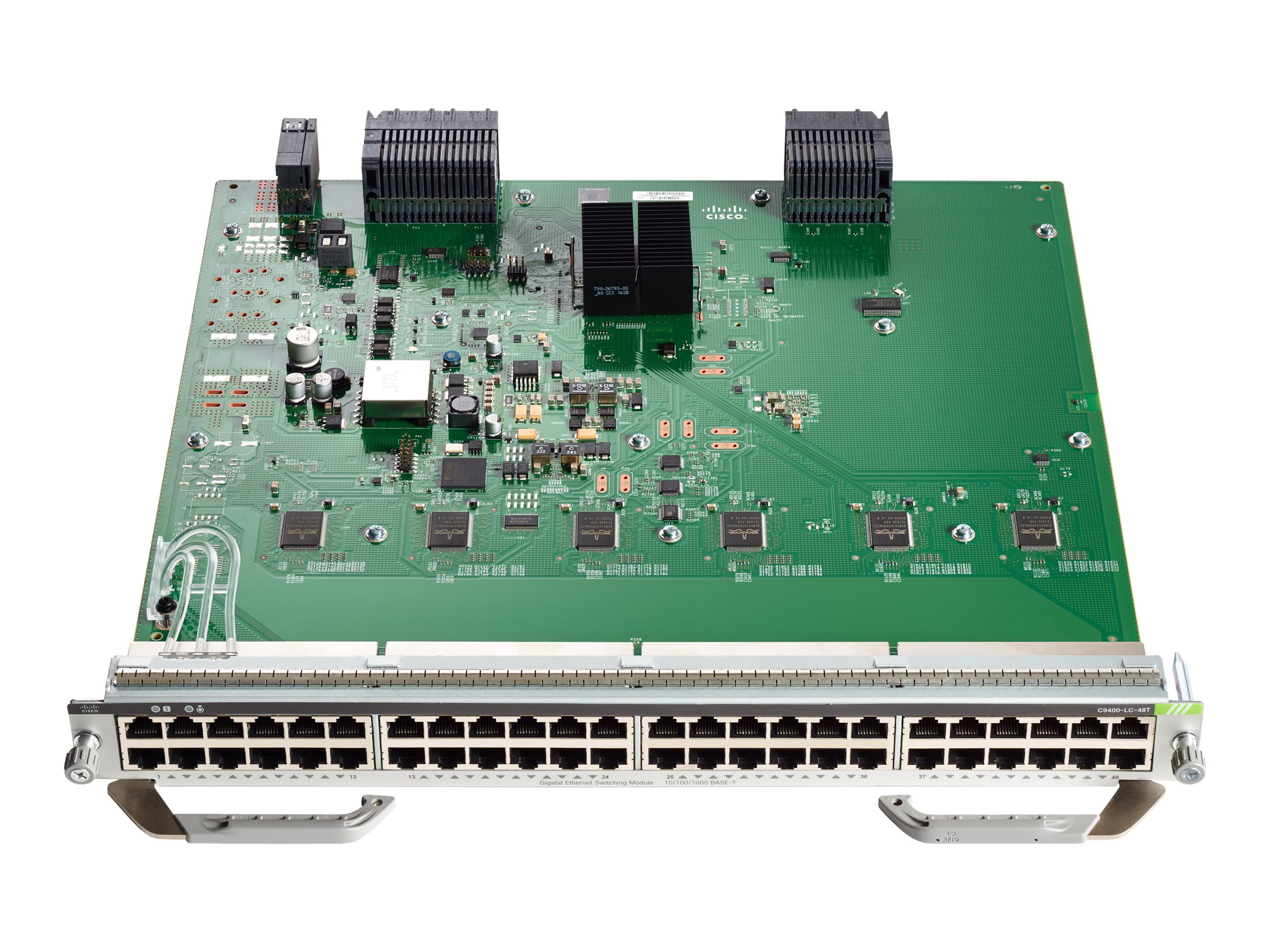

Switch – 48 ports |
| Enclosure Type |
Plug-in module |
| Ports |
48 x 10/100/1000 |
| PoE Budget |
60 W |
| Jumbo Frame Support |
9216 bytes |
| Features |
Port Aggregation Protocol (PAgP) support, Energy Efficient Ethernet, Precision Time Protocol (PTP), TrustSec support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as, IEEE 802.3az |
| Expansion / Connectivity |
| Interfaces |
48 x 1000Base-T RJ-45 |
| Miscellaneous |
| Compliant Standards |
CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements |
| OS Required |
Cisco IOS XE 16.6 or later |
| Dimensions & Weight |
| Width |
1.6 in |
| Depth |
14.9 in |
| Height |
14.6 in |
| Environmental Parameters |
| Min Operating Temperature |
23 °F |
| Max Operating Temperature |
113 °F |
| Humidity Range Operating |
10 – 95% (non-condensing) |
| Min Storage Temperature |
-40 °F |
| Max Storage Temperature |
158 °F |
| Humidity Range Storage |
10 – 95% (non-condensing) |
| Compatibility Information |
| Designed For |
P/N: C9404R, C9404R=, C9404R-10A, C9404R-1A, C9404R-48U-BDL-EDU, C9404R-48U-BNDL-1A, C9404R-48U-BNDL-1E, C9404R-48U-BNDL-A, C9404R-48U-BNDL-E, C9407R, C9407R-10A, C9407R-1A, C9407R-96U-BDL-EDU, C9407R-96U-BNDL-1A, C9407R-96U-BNDL-1E, C9407R-96U-BNDL-A, C9407R-96U-BNDL-E, C9407R-P, C9410R, C9410R-1A, C9410R-96U-BDL-EDU, C9410R-96U-BNDL-1A, C9410R-96U-BNDL-1E, C9410R-96U-BNDL-A, C9410R-96UBNDLA-RF, C9410R-96U-BNDL-E, C9410R-P |
