Transceivers

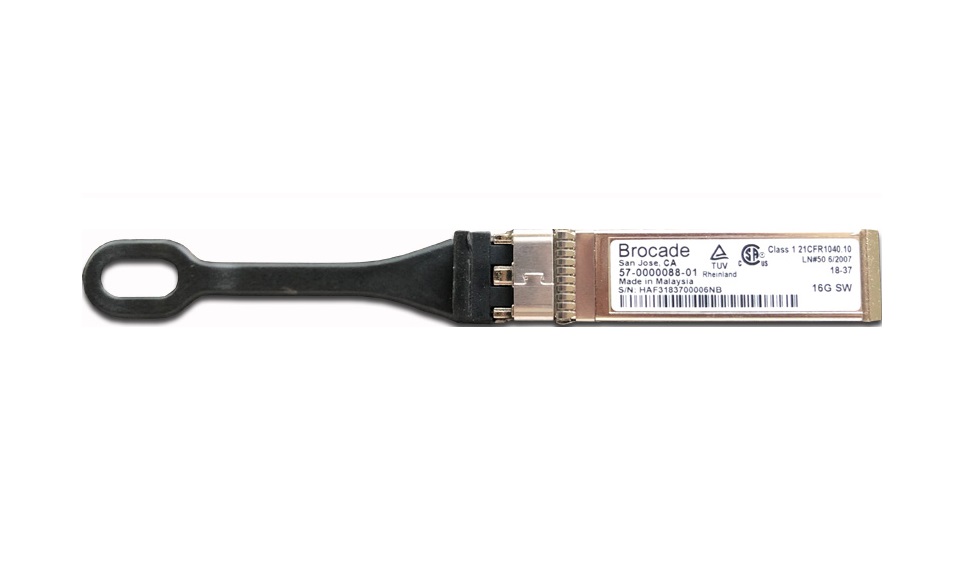

Brocade – 57-0000088-01 – 16GBase-shortwave Multi-mode Fiber 100m 850nm Duplex Lc Connector Sfp+ Transceiver Module
57-0000088-01
| Part Number | 57-0000088-01 |
| Form Factor | SFP+ |
| Wavelength | 850 nm |
| Data Rate | 14.025 Gb/s |
| Fiber Type | MMF |
| Optical Components | VCSEL/PIN |
| Max Distance | 100m on OM3 |
| Transmitter Power | -6.5 ~ -1.2 dBm |
| Receiver Sensitivity | < -10.5 dBm |
| Extinction ratio | > 3.5 dB |
| Receiver Overload | > -1 dBm |
| Connector | Duplex LC |
| Digital Diagnostic Monitoring | Yes |
| Weight | 0.03 kg |
| Environment | Operating: 0°C to 70°C |
| Storage: -40°C to 85°C | |
| Application | High-speed storage area networks |
| − Switches and hubs | |
| − Network interface cards | |
| − Mass storage systems | |
| − Host bus adapters | |
| Tri-Rate 4G/8G/16G Fibre | |
| Channel | |
| Compliance | IEC/EN 61000-4-2,IEC-60825 |
| FDA 21CFR 1040.10 and 1040.11 | |
| RoHS |
| brands | Brocade |
|---|
