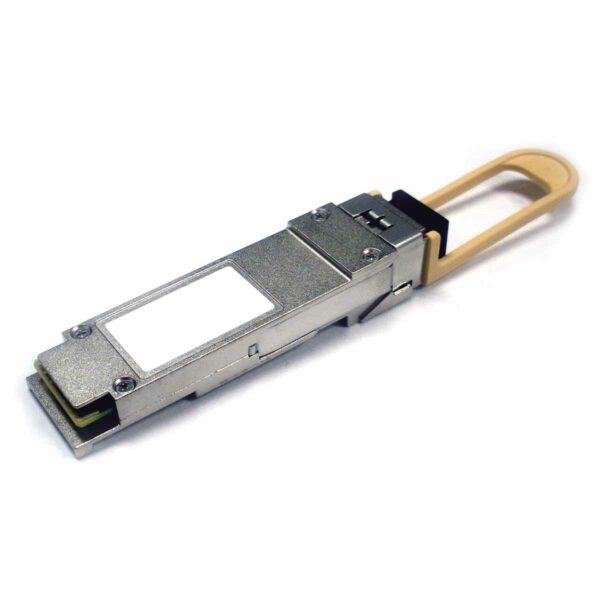

Arista Network – QSFP-40G-SRBD – 40GBASE-SR-BiDi QSFP+ Duplex LC 100m Transceiver
QSFP-40G-SRBD
| Part Number | QSFP-40G-SRBD |
| Form Factor | QSFP+ |
| Data Rate | 40 Gb/s |
| Fiber Type | MMF |
| Wavelength | 832nm – 918nm |
| Max Distance | 150m@OM4 or 100m@OM3 |
| Transmitter Power | -4.0 ~ +5.0dBm |
| Optical Components | VCSEL/PIN |
| Extinction ratio | 3.5dB |
| Receiver Overload | 0.5dBm |
| Digital Diagnostic Monitoring | Yes |
| Receiver Sensitivity | <-11.0dBm |
| Connector | LC duplex |
| Weight | 0.05 kg |
| Environment | Operating: 0°C to 70°C |
| Storage: -40°C to 85°C | |
| Compliance | IEC/EN 61000-4-2,IEC-60825 |
| FDA 21CFR 1040.10 and 1040.11 | |
| RoHS,SFF-8436,IEEE802.3ba | |
| Application | ● Low EMI radiation Switches, servers and routers |
| ● Telecommunication and wireless infrastructure | |
| ● Test and measurement equipment | |
| ● Networked storage systems | |
| ● Data Center networks | |
| ● Storage area networks |
| brands | Arista Networks |
|---|
